What a Heavy Duty Band Sealer Is
Table-top band sealers work well for small pouches. When a pack holds several kilos of atta, rice or sugar, holding it up to a table sealer becomes tiring and the seal suffers. The heavy duty model moves the whole sealer onto a floor stand, with a conveyor that carries the filled pouch standing upright while the bands seal its mouth.
The sealing itself is the same continuous process: the mouth passes through a heating zone where the inner layers fuse, then through cooling where the seal sets flat.
Why Floor-Standing Helps With Heavy Pouches
- The pouch carries its own weight. It stands on the belt, so the operator only guides the mouth into the bands.
- Working height is fixed. The sealing head is at the right height for a standing operator, which matters across a full shift.
- It fits a line. Filled packs can move straight from the filling point onto the conveyor.
- It moves when you need it to. Castor wheels let you roll it into place or aside for cleaning.
The Control Panel and Emergency Stop
Settings are shown on digital controllers on the control panel, so a supervisor can check at a glance that the line is running the agreed numbers. Write the right setting for each pouch on a card near the panel.
The emergency stop switch is there for jams, tipped pouches and anyone reaching too close to the bands. Show every new operator where it is before they feed a single pouch, and never clear a jam with the machine running.
Placing It on a Packing Line
| Station | Job |
|---|---|
| Grinding or cleaning | Product prepared and cooled |
| Weighing and filling | Pouch filled to the set weight |
| Heavy duty band sealer | Pouch carried upright and sealed |
| Coding | Date, MRP and batch printed |
| Cartons or sacks | Packed for dispatch |
Flour and spice mills that run a 5 HP cyclone type double chamber pulverizer or a 3 HP masala pulverizer often reach the point where hand sealing cannot keep up. Snack units with a semi-automatic noodle making machine set face the same problem. For the coding step, a handheld inkjet printer prints on the pouch as it comes off the conveyor.
Getting Clean Seals on Heavy Packs
- Leave enough empty film above the product so the bands can press the mouth flat.
- Settle the fill by tapping the pouch before it reaches the sealer.
- Keep flour and powder off the seal area. Fine dust is the most common cause of leaks.
- Use pouches with a heat-sealable inner layer and a thickness suited to the weight.
- Test every new pouch lot before running a full batch.
Running Long Shifts
Let the machine reach its set temperature before the first pouch. Keep the area around the bands free of dust and torn film during the shift. At the end of the day, switch off, let it cool, brush down the conveyor and bands and wipe the panel. Check the bands regularly, because a worn band gives an uneven seal long before it breaks.
On a two-shift line, hand over the settings card and a few sealed sample packs at each shift change, so the next team starts from a known good seal. Keep spare bands and a few spare fuses in a labelled box near the machine, because a stopped sealer stops the whole line behind it. Note any jams in a simple register with the time and pouch type, which makes repeating faults easy to spot.
Choosing Pouches for Heavy Packs
On a heavy line the pouch carries more weight and gets handled more roughly in transport, so the film choice matters as much as the sealer.

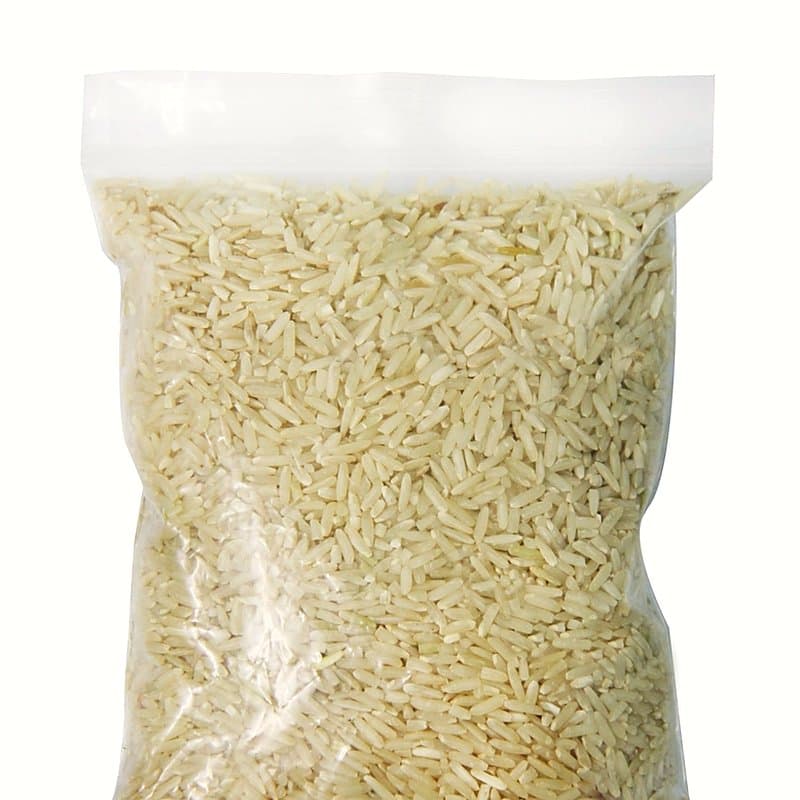

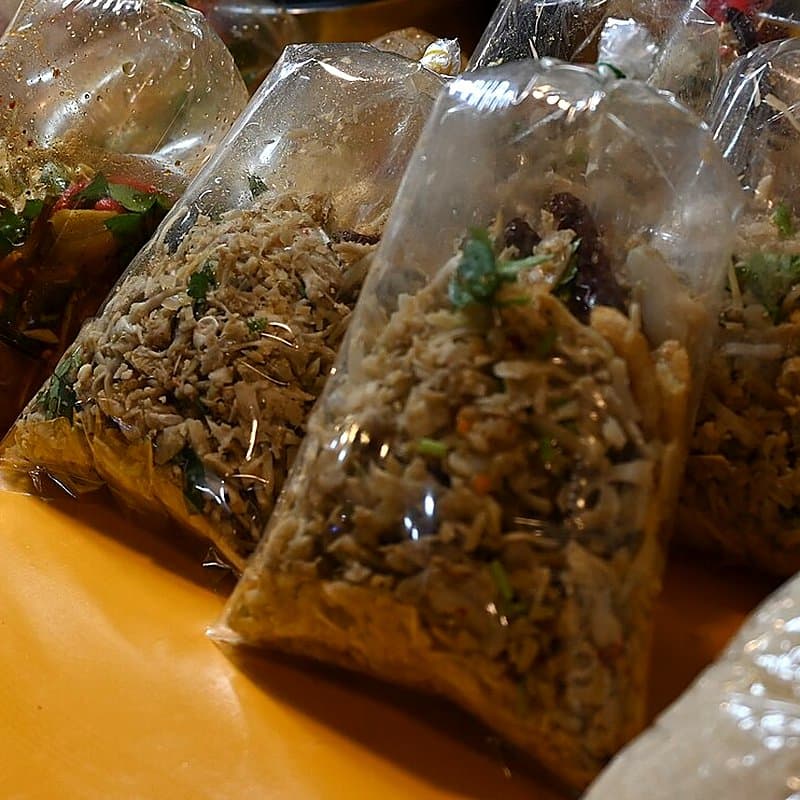

- Plain plastic pouches are the low-cost option for grain, sugar and pulses. Ask for a film thickness that suits your pack weight.

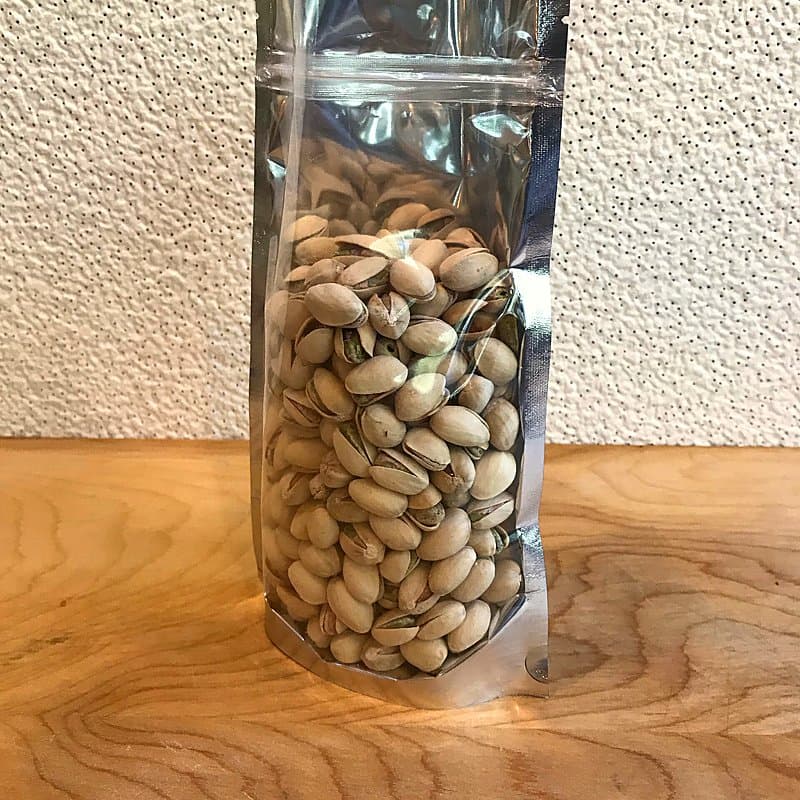

- Laminated pouches suit atta, masala and snacks that need a longer shelf life and printed branding. The inner layer must be heat-sealable.
- Gusseted pouches stand better on the conveyor. Fold the gusset flat at the mouth before it enters the bands.
Buy a small trial lot from a new pouch supplier, seal it on your line and drop test it before you order in bulk. Keep a note of the setting that worked for each supplier and size, because two pouches that look the same can seal very differently. Agree the seal area width and film thickness with your supplier in writing, so the next lot matches the last one.
Questions to Ask Before You Buy
- What is the heaviest pouch you will seal, and what film is it made from?
- How many packs do you fill in a day, and how many people feed the line?
- What power supply is available where the line will stand?
- Do you need the sealer to match the height of an existing filling table?
Share these answers when you ask for the spec sheet. If your pouches are small and the work is done at a counter, the SS body table-top band sealer or the standard band sealing machine for pouches may suit you better. Packed food also has registration and labelling requirements that depend on product, state and turnover, so check what applies to you with the relevant department.
Short Mein Samjhiye (Hinglish Summary)
Heavy duty band sealing machine zameen par khadi hone wali machine hai, conveyor ke saath. Bhaari pouch belt par seedha khada rehta hai aur uska munh seal ho jaata hai. Digital controller, emergency stop aur pahiye lage hain.
Atta, chawal, masala jaise bhaari pack ke liye theek hai. Pouch ko upar tak mat bhariye, munh par powder na lagne dijiye, aur har naye pouch lot par test kijiye. Detailed specification request par milti hai. Price ke liye WhatsApp par message kijiye.
